Restaurant hygiene ratings in Cambridge

Data Analysis

Mapping

Plotting Cambridge restaurant cleanliness using R.

Author

James Black

Published

February 19, 2014

Modified

February 19, 2014

The dirtiest restaurants in Cambridge (Hygiene rating of 1), on the 20th Feb 2014.

Above is a plot of the restaurants in Cambridge that have a food safety rating of one. I’ve manually moved the labels so none overlap, which means the locations are approximate. This plot is the last one from the analysis below.

This plot was made after a friend pointed out the Food Standards Agency publishes their data, so anyone can go to their open data site and download away. So, after downloading the file, I copied it across to a csv (it comes as xml).

Then, I load up the packages and the data file I’ll be using.

#| eval: false # Do not evaluate this chunk

require(ggplot2)
require(ggmap)
require(devtools)
library(RColorBrewer) # scale colours

setwd("folder to output to")

cam_restaurants <- read.csv("cam_restaurants.csv") # load data

Now places like newsagents that sell food also get rated, so I’m going to subset out just the the kinda joints I’m really interested in.

#| eval: false # Do not evaluate this chunk

  selected<-c("Mobile caterer",
              "Pub/bar/nightclub",
              "Restaurant/Cafe/Canteen",
              "Takeaway/sandwich shop")
  cam_clip <- cam_restaurants[cam_restaurants$BusinessType %in% selected,]

I’ll also need to get three maps of Cambridge at different magnifications.

#| eval: false # Do not evaluate this chunk

cam = get_map('Cambridge, UK',13,scale=4, color="bw")
cam_mid = get_map('Cambridge, UK',14,scale=4, color="bw")
cam_zoom = get_map('Cambridge, UK',15,scale=4, color="bw")

And the first plot - where the food selling places are, and which of the four categories they are.

#| eval: false # Do not evaluate this chunk

pdf("cam_4.pdf")
ggmap(cam) + geom_point(data=cam_clip,
                        aes(x=Longitude,
                            y=Latitude,
                            colour=BusinessType),
                        size=2,
                        alpha=0.5,
                        shape=19)
dev.off()

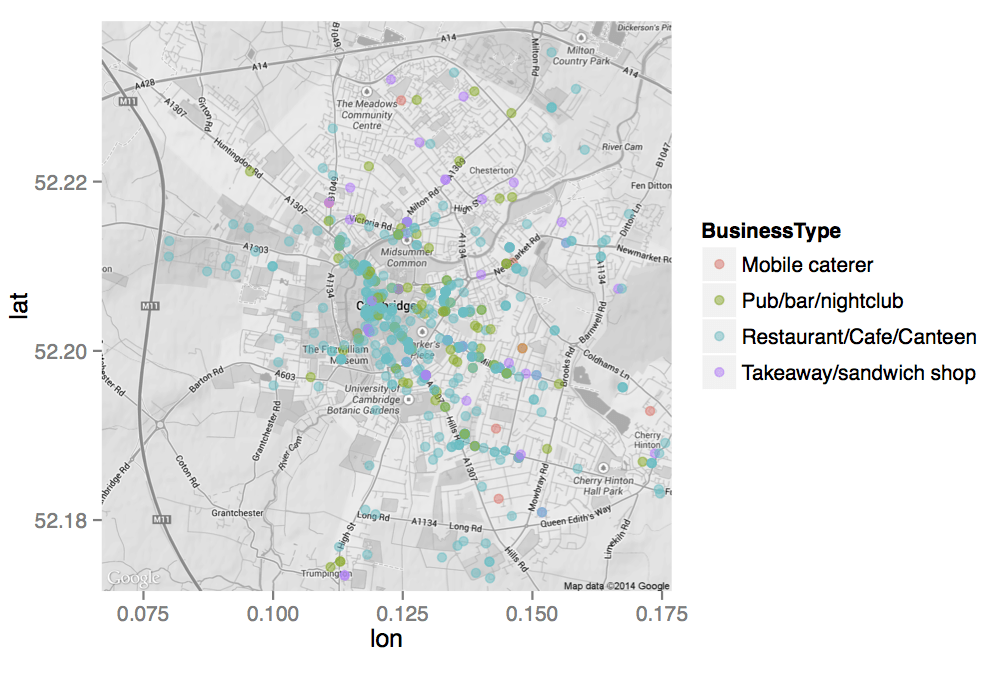

Food outlets in Cambridge, by outlet type.

What about the food ratings? First I’ll split it into 1 & 2 (which is bad) and 3-5 (which are the ones rated the highest).

#| eval: false # Do not evaluate this chunk

cam_cut <- cam_clip
  levels(cam_cut$RatingValue)
  combine1 <- c("1", "2")
    levels(cam_cut$RatingValue)[levels(cam_cut$RatingValue) %in% combine1] <- paste(abbreviate(combine1, 5), collapse = "&")
  combine2 <- c("2","3", "4","5","Exempt")
    levels(cam_cut$RatingValue)[levels(cam_cut$RatingValue) %in% combine2] <- paste(abbreviate(combine2, 5), collapse = "&")

And now I plot the dirty (1-2) against the clean (3-5 and exempt). If you run this code, you’ll see the extant options makes sure my contour plot isn’t constrained. Which also meant I had to edit this plot down after running it.

#| eval: false # Do not evaluate this chunk

pdf("cam_dirty_points.pdf")
ggmap(cam_mid, extent = "normal", maprange=FALSE) +
  geom_density2d(data = cam_clip_dirty,
                 aes(x = Longitude,
                     y = Latitude)) +
  stat_density2d(data = cam_clip_dirty,
                 aes(x = Longitude,
                     y = Latitude,
                     fill = ..level.., alpha = ..level..),
                 size = 0.01, bins = 16, geom = 'polygon') +
  geom_point(data=cam_clip_dirty,
             aes(x=Longitude,
                 y=Latitude),
             size=1,
             color="red",
             alpha=1,
             shape=19)
dev.off()

pdf("cam_clean_points.pdf")
ggmap(cam_mid, extent = "normal", maprange=FALSE) +
  geom_density2d(data = cam_clip_clean,
                 aes(x = Longitude,
                     y = Latitude)) +
  stat_density2d(data = cam_clip_clean,
                 aes(x = Longitude,
                     y = Latitude,
                     fill = ..level.., alpha = ..level..),
                 size = 0.01, bins = 16, geom = 'polygon') +
  geom_point(data=cam_clip_clean,
             aes(x=Longitude,
                 y=Latitude),
             color="red",
             alpha=1,
             shape=19,
             size=1)
dev.off()

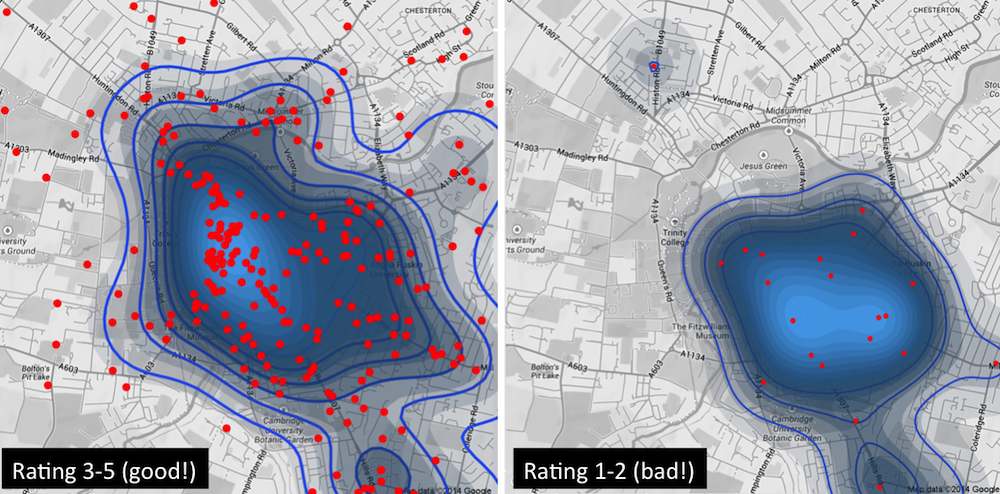

Location of restaurants with good and bad food safety ratings.

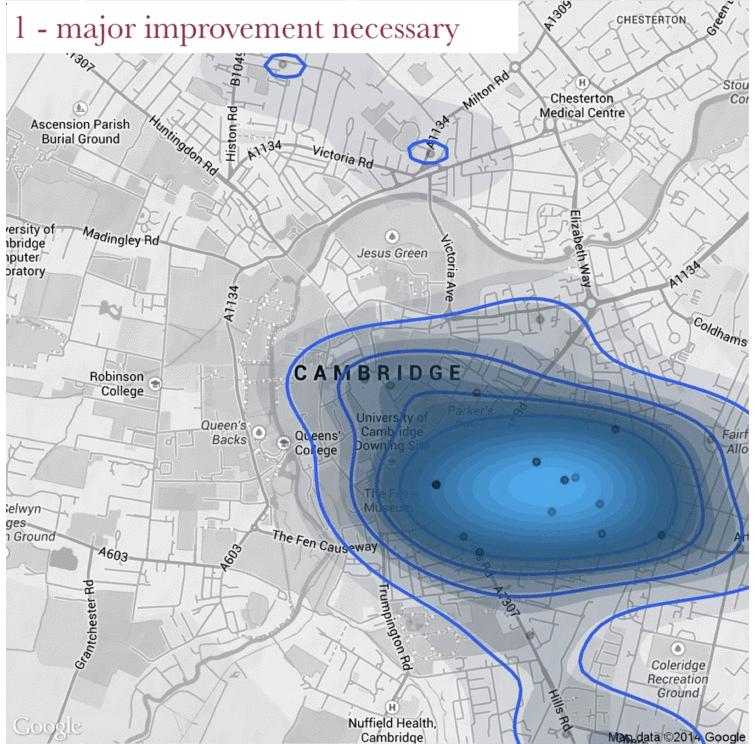

And a gif going from 1 (bad) to 5 (great). No code, as gifs from R requires installing external programs via the terminal. This makes it more clear that it’s not just ‘the dodgy places are in Mill Rd’, as the 4 star rated places are also clustered towards Mill Rd. It’s mainly just but it looks like the very worst rated places are out towards Mill Rd, while the 5 star rated places are clustered back towards the centre.

So most of the restaurants with poor food safety ratings are around mill road. So what are the called?¹ The following code will plot their names, zooming in on Mill Road. I manually moved the labels around to make them readable. So it’s just the rough location.

#| eval: false # Do not evaluate this chunk

cam_clip_dirty_1$Business <- as.character(cam_clip_dirty_1$BusinessName) # change format for plotting
cam_clip_dirty_1 <- cam_clip[cam_clip$RatingValue %in% "1",] # clip to dirty
cam_mill = get_map('Mill Rd, Cambridge, UK',14,scale=4, color="bw") # focus on mill road
p <- ggmap(cam_mill)
p <- p + xlab("Longitude")+ylab("Latitude")
p <- p + geom_text(data = cam_clip_dirty_1,
                   aes(x = Longitude,
                       y = Latitude,
                       label = Business,
                       color=Business
                       ),
                   size = 3, vjust = 0, hjust = -0.5)
p
ggsave("dodgey_name.pdf")

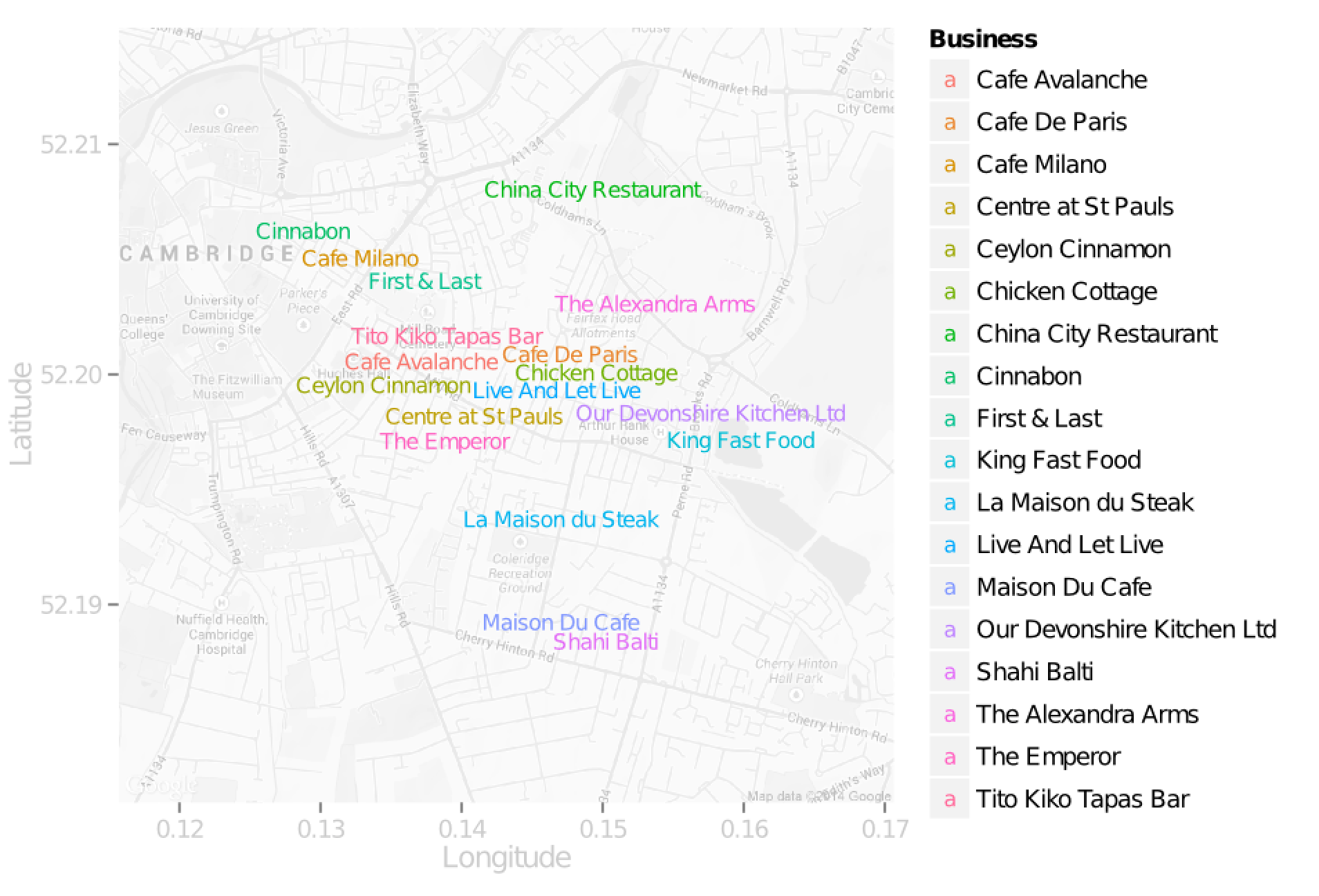

The dirtiest restaurants in Cambridge (Hygiene rating of 1), on the 20 Feb 2014.

Footnotes

I should add this was their status on the 20th of Feb 2014, they may of redeemed themselves since! I know a favourite curry house of many Jesuans, was also responsible for a major food poisoning outbreak. So these poor ratings are hopefully transient.↩︎
